Description

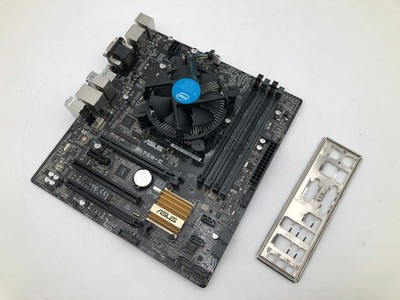

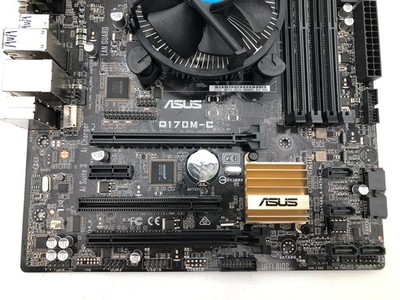

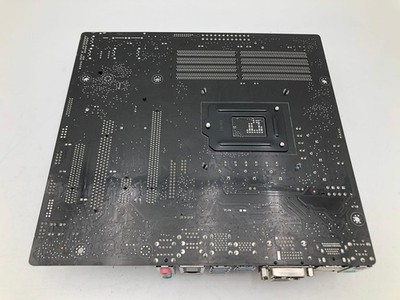

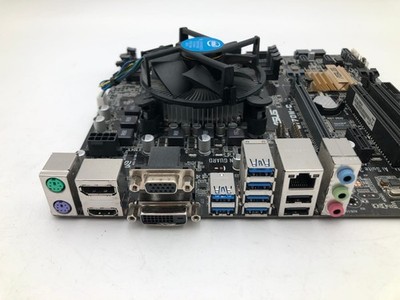

ASUS Q170M-C LGA 1151 i7-6700 Motherboard CPU Combo – Tested
The ASUS Q170M-C is a MicroATX motherboard designed for Intel processors with an LGA 1151 socket. It features an Intel Q170 chipset and supports DDR4 memory with a maximum capacity of 64 GB across four memory slots. Additionally, it includes six SATA connectors for storage options.
Technical Specifications
- Brand: ASUS
- Model: Q170M-C
- Type: Motherboard
- Bundled Items: Motherboard with CPU
- Form Factor: MicroATX
- Socket Type: LGA 1151
- Chipset: Intel Q170
- Memory Type: DDR4
- Number of Memory Slots: 4
- Maximum Memory: 64 GB
- Number of SATA Connectors: 6
- Number of M.2 Slots: 0
- Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x4 mode)
- Audio Chipset: Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Network Speed: 1x Gigabit Ethernet
- Series: Q170M
- Most Suitable For: Desktop
- Manufacturer Warranty: No Warranty
- BIOS Version: 4212 (07/24/2019)
- IO Shield Included: Yes
- Processor: Intel Core i7-6700
- Processor Model: Intel Core i7-6700
- Processor Speed: 3.40 GHZ
- Capacity per Module: 4.00 GB
- Memory Speed: 2133
- Number of Memory Modules: 1
- Total Memory: 4.0 GB
Bundled CPU
Bundled CPU: Core i7 6700 @ 3.40GHz
CPU test result on this board: PASS
Cooling: No heatsink or fan — CPU only.
I/O Shield
Yes — original I/O shield is included with this motherboard.
Cosmetic Condition
- Capacitors: Excellent
- CPU Socket Pins: Pristine
- Onboard Ports: All clean
- M.2 Hardware: Board has no M.2 slots — N/A.
California Prop 65 Warning
This product contains a chemical known to the State of California to cause cancer.
Includes: Item only
Does not Include: No additional items other than what is pictured
R2V3: C4 / F3
Please review all photos for cosmetic condition and any noted defects.
Additional information
| Weight | 7.00 lbs |
|---|---|
| Dimensions | 15.00 × 12.00 × 4.00 in |
