Description

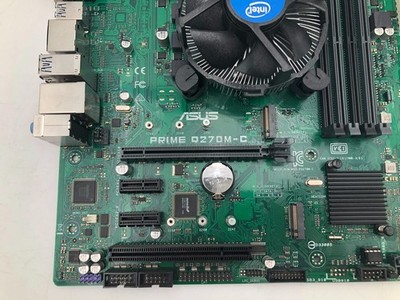

ASUS PRIME Q270M-C LGA1151 i7-7700 Motherboard CPU Combo – Tested
The ASUS PRIME Q270M-C is a MicroATX motherboard designed for Intel processors with an LGA1151 socket. It features the Intel Q270 chipset and supports DDR4 memory with a maximum capacity of 64 GB across four slots. Additionally, this motherboard includes six SATA connectors and two M.2 slots for versatile storage options.
Technical Specifications
- Brand: ASUS
- Model: PRIME Q270M-C
- Type: Motherboard
- Bundled Items: Motherboard with CPU
- Form Factor: MicroATX
- Socket Type: LGA1151
- Chipset: Intel Q270
- Memory Type: DDR4
- Number of Memory Slots: 4
- Maximum Memory: 64 GB
- Number of SATA Connectors: 6
- Number of M.2 Slots: 2
- Compatible CPU Brand: Intel
- Expansion Slots: 1x PCIe 3.0/2.0 x16, 2x PCIe 3.0/2.0 x1, 1x PCI
- Audio Chipset: Realtek ALC887
- Network Speed: 1 GbE
- Series: PRIME
- Most Suitable For: Desktop
- Manufacturer Warranty: No Warranty
- BIOS Version: 2201 (12/21/2023)
- IO Shield Included: Yes
- M.2 Mounting Hardware: Complete
- Processor: Intel Core i7-7700
- Processor Model: Intel Core i7-7700
- Processor Speed: 3.60 GHZ
- Input/Output Ports: 1 x PS/2 keyboard port (purple), 1 x PS/2 mouse port (green)
- Features: ASUS 5X Protection III, DIGI+ VRM, LANGuard, Overvoltage Protection, ESD Guards, Stainless Steel Back I/O, Q-Design (Q-DIMM, Q-Slot)
- Country of Origin: Taiwan
- Item Height: 9.6 inches (24.4 cm)
- Item Length: 9.6 inches (24.4 cm)
- Item Width: 9.6 inches (24.4 cm)
Bundled CPU
Bundled CPU: Core i7 7700 @ 3.60GHz
CPU test result on this board: PASS

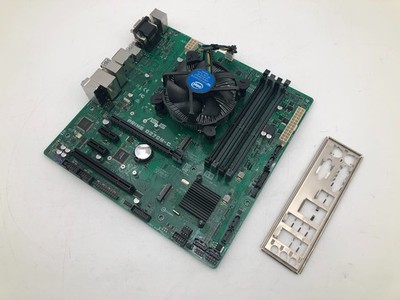

Cooling: Heatsink + fan included as pictured.
I/O Shield
Yes — original I/O shield is included with this motherboard.
Cosmetic Condition
- Capacitors: Excellent
- CPU Socket Pins: Pristine
- Onboard Ports: All clean
- M.2 Hardware: All M.2 mounting screws and stand-off spacers are present.
California Prop 65 Warning
This product contains a chemical known to the State of California to cause cancer.
Includes: Item only
Does not Include: No additional items other than what is pictured
R2V3: C5 / F3

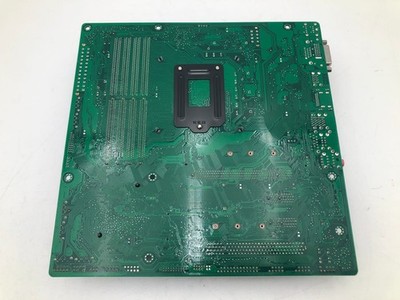

Please review all photos for cosmetic condition and any noted defects.
Additional information
| Weight | 7.00 lbs |
|---|---|
| Dimensions | 15.00 × 12.00 × 4.00 in |
| Model | PRIME Q270M-C |
| Type | |
| Bundled Items | Motherboard with CPU |
| Form Factor | |
| Socket Type | LGA1151 |
| Chipset | Intel Q270 |
| Memory Type | DDR4 |
| Number of Memory Slots | 4 |
| Maximum Memory | 64 GB |
| Number of SATA Connectors | 6 |
| Number of M.2 Slots | 2 |
| Compatible CPU Brand | Intel |
| Expansion Slots | 1x PCIe 3.0/2.0 x16, 2x PCIe 3.0/2.0 x1, 1x PCI |
| Audio Chipset | Realtek ALC887 |
| Network Speed | 1 GbE |
| Series | PRIME |
| Most Suitable For | Desktop |
| Manufacturer Warranty | No Warranty |
| BIOS Version | 2201 (12/21/2023) |
| IO Shield Included | Yes |
| M.2 Mounting Hardware | Complete |
| Processor | |
| Processor Model | Intel Core i7-7700 |
| Processor Speed | 3.60 GHz |

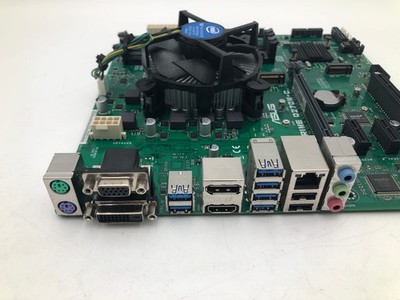

| Input/Output Ports | 1 x D-Sub Port, 1 x DisplayPort, 1 x DVI-D Port, 1 x HDMI Port, 1 x LAN (RJ-45) port, 1 x PS/2 keyboard port (purple), 1 x PS/2 mouse port (green), 2 x USB 2.0/1.1 ports, 3 x Audio jacks supporting 8-channel audio output, 6 x USB 3.0/2.0 ports |
| Features | ASUS 5X Protection III, DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, Q-Design (Q-DIMM, Q-Slot), Stainless Steel Back I/O |
| Country of Origin | Taiwan |
| Item Height | 9.6 inches (24.4 cm) |
| Item Length | 9.6 inches (24.4 cm) |
| Item Width | 9.6 inches (24.4 cm) |
