Gigabyte GA-Z270M-D3H LGA 1151 i7-7700K 32GB Motherboard Combo – Tested

Gigabyte GA-Z270M-D3H LGA 1151 i7-7700K 32GB Motherboard Combo – Tested

The GIGABYTE GA-Z270M-D3H is a MicroATX motherboard designed for Intel processors with an LGA 1151 socket. It features an Intel Q270 chipset, supports DDR4 memory with a maximum capacity of 64 GB across four slots, and includes six SATA connectors and two M.2 slots for storage expansion.

Technical Specifications

• Brand: GIGABYTE
• Model: GA-Z270M-D3H
• Type: Motherboard
• Bundled Items: Motherboard with CPU and Memory
• Form Factor: MicroATX
• Socket Type: LGA 1151
• Chipset: Intel Q270
• Memory Type: DDR4
• Number of Memory Slots: 4
• Maximum Memory: 64 GB
• Number of SATA Connectors: 6
• Number of M.2 Slots: 2
• Expansion Slots: 1x PCIe 3.0/2.0 x16, 2x PCIe 3.0/2.0 x1, 1x PCI
• Audio Chipset: Realtek ALC887 8-Channel High Definition Audio CODEC
• Network Speed: 1x Gigabit LAN
• Series: GA
• Most Suitable For: Desktop
• Manufacturer Warranty: No Warranty
• BIOS Version: F3 (01/13/2017)
• IO Shield Included: Yes
• M.2 Mounting Hardware: Complete
• Processor: Intel Core i7-7700K
• Processor Model: Intel Core i7-7700K
• Processor Speed: 4.20 GHZ
• Capacity per Module: 16.00 GB
• Memory Speed: 2133
• Number of Memory Modules: 2
• Total Memory: 32.0 GB
• Compatible CPU Brand: Intel

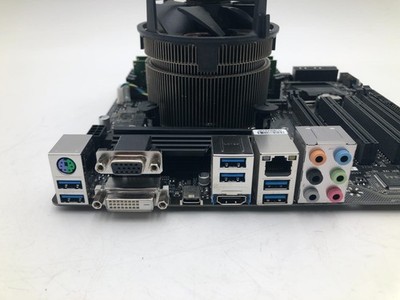

• Input/Output Ports: 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x USB Type-C, 6 x USB 3.1 Gen 1
• Features: Dual Channel Non-ECC Unbuffered DDR4, 2-Way CrossFire Multi-Graphics Support, Dual NVMe PCIe SSDs in RAID 0 Support, Intel Optane Memory Ready, Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface, Triple display interfaces including HDMI, High Quality Audio Capacitors and Audio Noise Guard with LED, Intel GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan, GIGABYTE UEFI DualBIOS, APP Center Including EasyTune and Cloud Station Utilities
• Country of Origin: China
• Item Height: 9.6 inches
• Item Length: 8.9 inches
• Item Width: 2.4 inches

Bundled CPU & Memory

Bundled CPU: Core i7 7700K @ 4.20GHz

CPU test result on this board: PASS

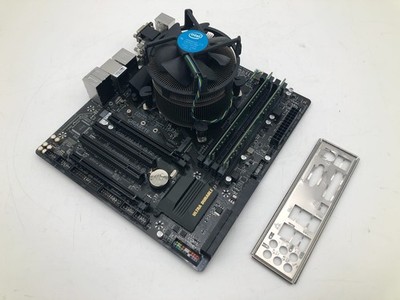

Cooling: Heatsink + fan included as pictured.

I/O Shield

Yes — original I/O shield is included with this motherboard.

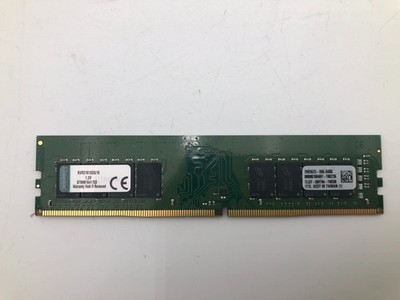

Memory Modules (2)

Cosmetic Condition

• Capacitors: Excellent
• CPU Socket Pins: Pristine
• Onboard Ports: All clean
• M.2 Hardware: All M.2 mounting screws and stand-off spacers are present.

California Prop 65 Warning

This product contains a chemical known to the State of California to cause cancer.

Includes: Item only

Does not Include: No additional items other than what is pictured

R2V3: C5 / F3

Please review all photos for cosmetic condition and any noted defects.
