Description

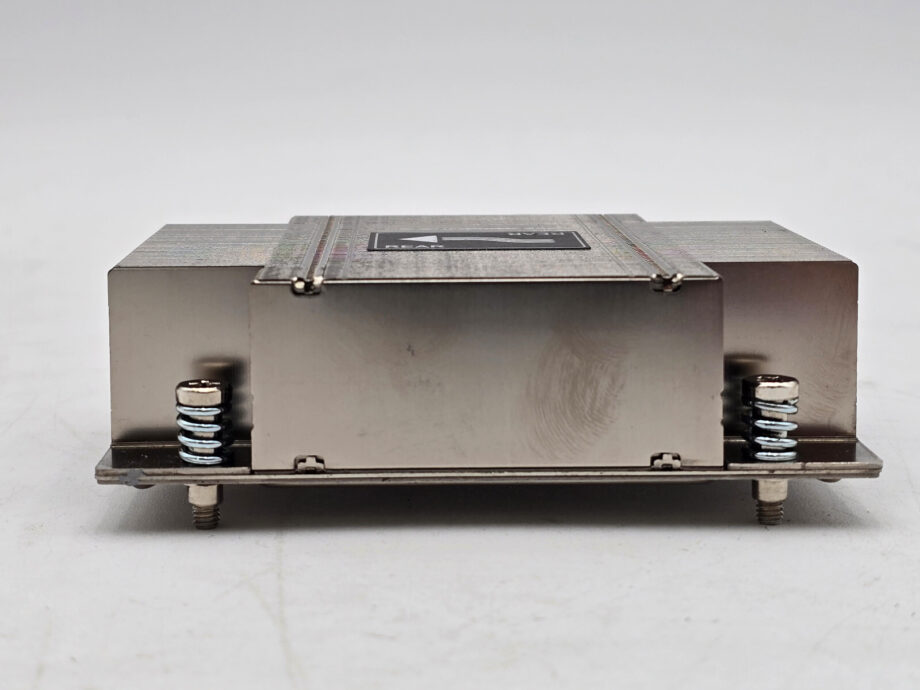

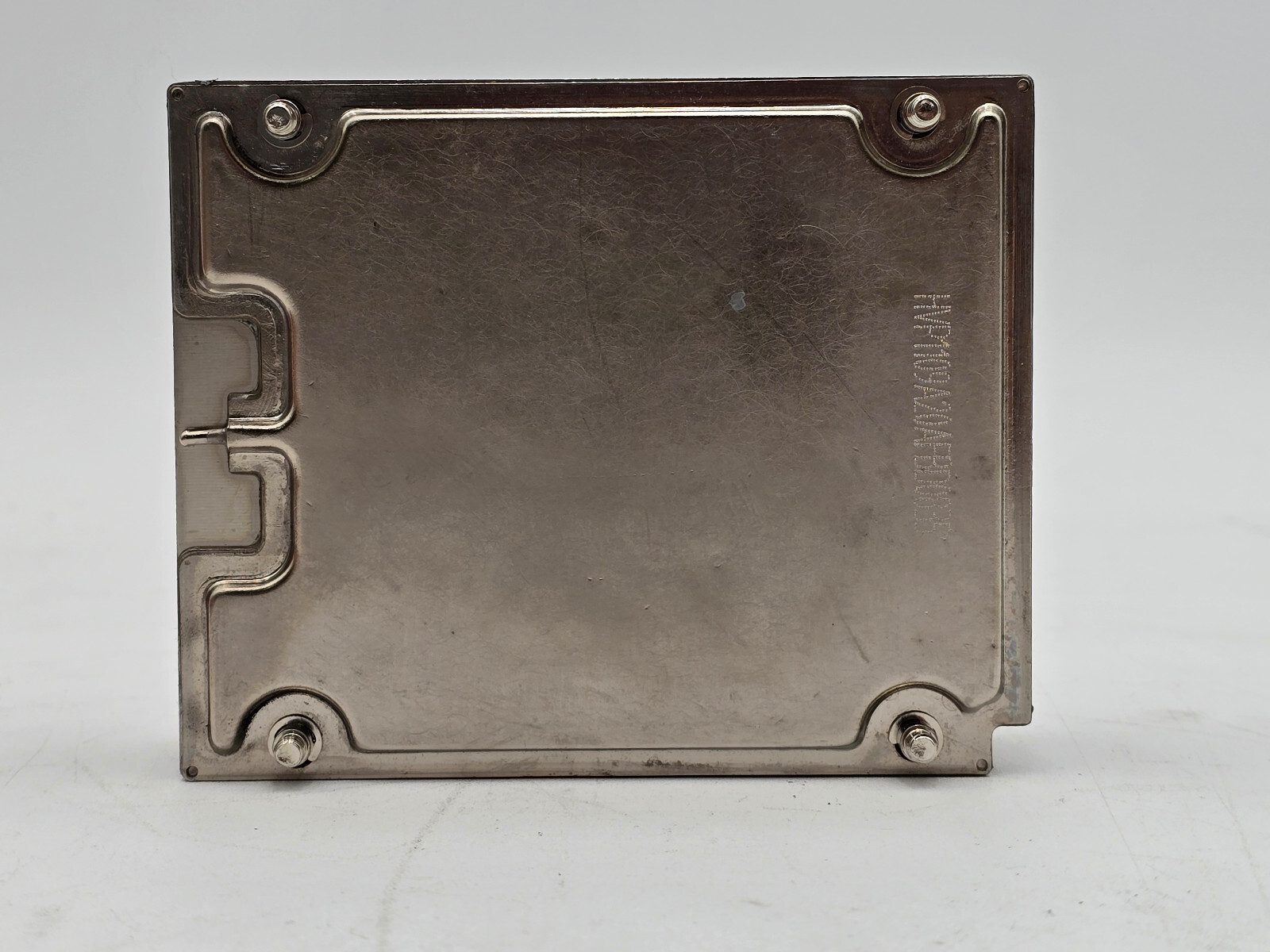

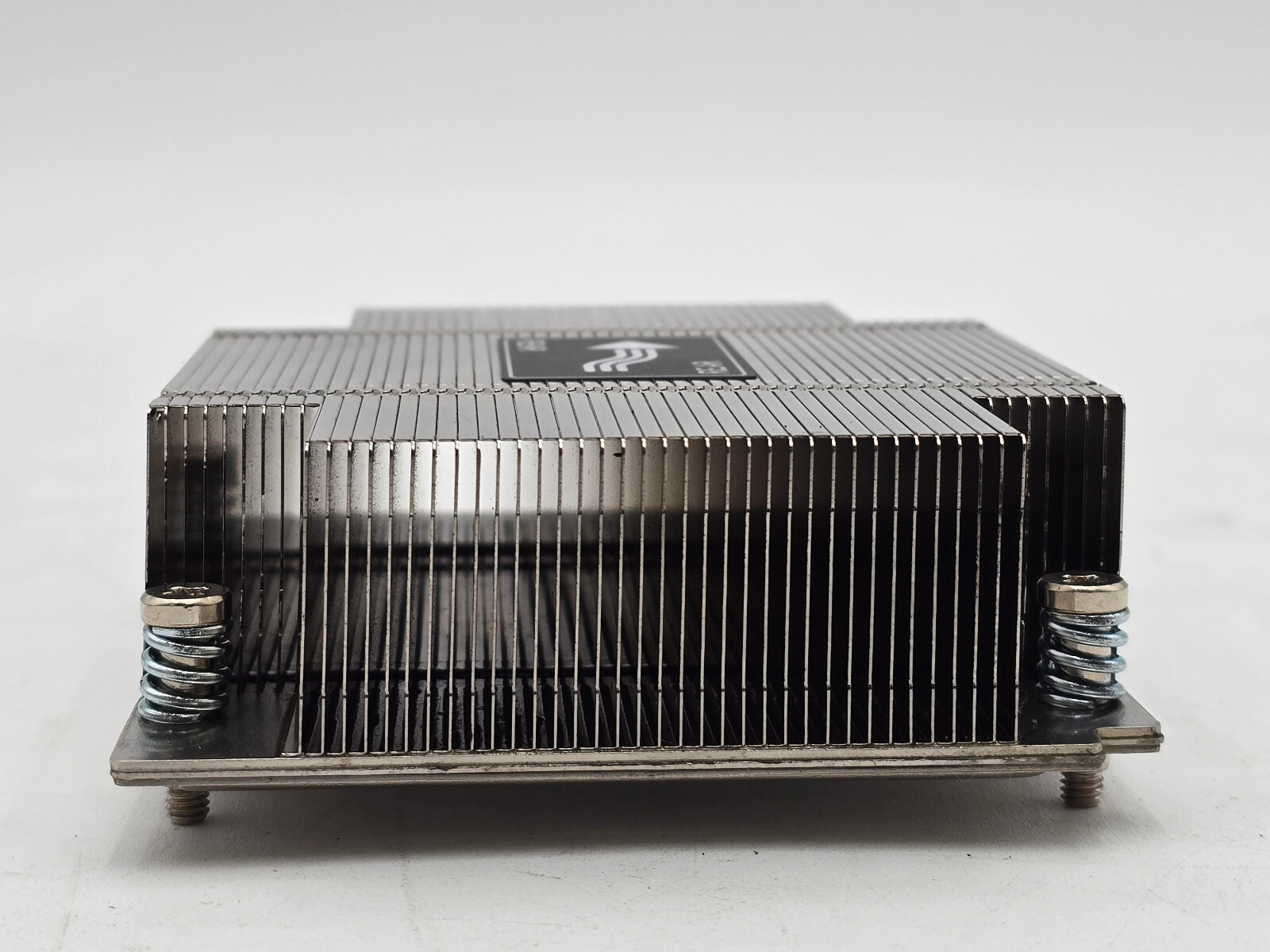

Cisco 700-42565-01 Rear Screw Down Heatsink for UCS B200/B420 M3/M4 Blade Servers
Technical Specifications of this item
We have tested this system and it is working, additional details below.
- Part Number: 700-42565-01
- Compatibility: Cisco UCS B200 M3/M4, B420 M3/M4 Blade Servers
- Mounting Type: Screw Down
- Placement: Rear (CPU2)
- Material: Aluminum with integrated fins for passive cooling
The Cisco 700-42565-01 Rear Screw Down Heatsink is specifically designed for use with the Cisco UCS B200 M4 and B420 M4 Blade Servers. It is tailored for CPU2 placement in dual-CPU configurations and features a screw-down mounting mechanism for secure installation.
For earlier models like the B200 M3 and B420 M3, Cisco recommends different heatsinks, such as the UCSB-HS-01-EP, which are designed to accommodate the specific thermal and structural requirements of those servers.
Therefore, the 700-42565-01 heatsink is not compatible with the B200 M3 or B420 M3 servers. It’s essential to use the correct heatsink model to ensure proper thermal management and system stability.
-
-
Includes: No Power Cable Required
-
-
- R2V3 : C5F3
