Diamond Stealth 3D 2000 4MB PCI VGA S3 ViRGE Graphics Card 1996 Vintag

Stealth 3D 2000 Graphics Card 23030220-205

The Diamond Multimedia Systems Stealth 3D 2000 is a graphics card designed for video and graphics applications. It features a full height bracket form factor and is equipped with the S3 ViRGE GPU, which supports VGA output. This model comes with either 2 MB or 4 MB of memory, making it suitable for various multimedia tasks.

We have tested this graphics card and confirmed it is working. Additional details and technical specifications are below.

Technical Specifications

• Brand: Diamond Multimedia Systems
• Model: Stealth 3D 2000
• MPN: 23030220-205
• Type: gpu
• Bracket Form Factor: Full Height
• Manufacturer Model: Stealth 3D 2000
• Fcc Id: FTUPC1354M
• GPU Family: S3 ViRGE
• Visible Ports: VGA
• Chipset Manufacturer: S3
• Chipset/GPU Model: ViRGE (86C325)
• Memory Size: 2 MB or 4 MB
• Memory Type: EDO DRAM
• Compatible Slot: PCI
• Connectors: 15-pin DSUB (video out), 26-pin VGA Feature connector
• Features: 2D and 3D acceleration, TV-out (Pro version), MPEG-1 video playback
• Power Cable Requirement: Not specified
• APIs: Direct3D, BRrender, Renderware
• Cooling Component Included: Not specified
• Country of Origin: Not specified
• Item Height: Not specified
• Item Length: Not specified
• Item Width: Not specified

About This Item

The Diamond Multimedia Systems Stealth 3D 2000 is a graphics card designed for video and graphics applications. It features a full height bracket form factor and is equipped with the S3 ViRGE GPU, which supports VGA output. This model comes with either 2 MB or 4 MB of memory, making it suitable for various multimedia tasks.

Condition Notes

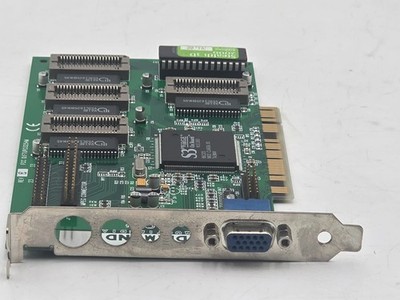

This Diamond Multimedia Stealth 3D 2000 is a vintage PCI graphics card featuring the S3 ViRGE 86C325 graphics chipset and 4 MB of installed EDO video memory. Designed for mid-1990s desktop systems, the card provides standard VGA output and combines 2D Windows acceleration with early hardware-assisted 3D graphics support.

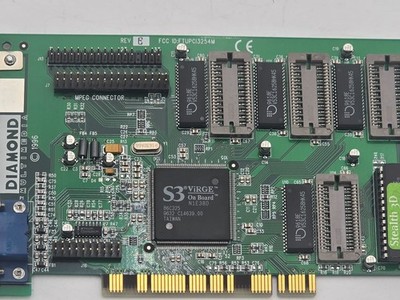

The card is identified by Diamond part number 23030220-205 and is marked REV E. It includes the original BIOS ROM, internal MPEG expansion connector, and socketed memory expansion. This is the original Stealth 3D 2000 model, not the later Stealth 3D 2000 Pro.

**This item is intended ONLY for use with compatible vintage computer hardware.** Buyers are responsible for verifying compatibility with their specific vintage system before purchase.

This item has been tested and confirmed to output video through the VGA connection. No additional extended functionality or 3D performance testing was performed.

**Condition: C5F1.** The card shows normal cosmetic wear consistent with age and previous installation, including surface wear and discoloration on the metal mounting bracket. No obvious broken or missing components were observed during visual inspection.

Please review all photos carefully for the exact condition, configuration, connectors, and included hardware. Only the graphics card shown is included.

California Prop 65 Warning

This product contains a chemical known to the State of California to cause cancer.

Includes: Graphics card only

Does not Include: Original box, Adapter cables, Driver disc

R2V3: C5 / F1

Please review all photos for cosmetic condition and any noted defects.
