This TEAC FD-505-222-U5 is a dual-format internal floppy disk drive, combining both 3.5-inch and 5.25-inch mechanisms in a single bay. Ideal for vintage computing enthusiasts, it was a key solution during the transition from 5.25-inch to 3.5-inch disks. The unit shows moderate wear from previous use.
Includes
- Item as pictured
Does Not Include
- Accessories unless pictured
R2V3: C5 / F1
The items are used, tested, and in working condition. Please see the full description and photos for details. Items in the lot are in similar condition to those photographed. Buyer note: Please review our sales policies. We do not offer partial refunds but provide a 100% money-back 30-day warranty. This policy is not flexible. We encourage you to review the listing in full before purchase.
Item and Condition Notes
Power on tested, as pictured, no top cover on this unit. You have a TEAC FD-505 302-U, a dual-format internal floppy disk drive designed for IBM PC-compatible computers.
What makes this device interesting is that it combines two independent floppy disk mechanisms in a single 5.25-inch drive bay. It was an elegant solution during the transition from 5.25-inch floppy disks to 3.5-inch disks in the early 1990s.

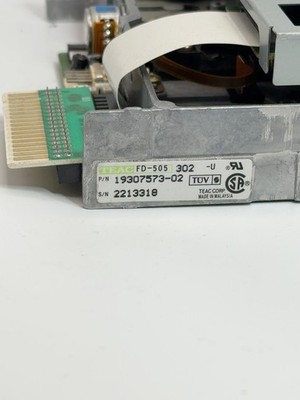

Identification
Field Details
Manufacturer TEAC Corporation
Model FD-505 302-U
Part number 19307573-02
Serial number 2213318
Origin Malaysia
Form factor 5.25-inch, half-height bay
Device type Dual floppy disk drive
Era Early-to-mid 1990s family
34-contact edge connector. This is a traditional floppy disk interface, not IDE, SATA, or SCSI.
– Data: 34-pin floppy interface.
– Power: Conventional 4-pin peripheral power connector, supplying 5V and 12V.
– Drive selection: Configurable so the 3.5-inch and 5.25-inch mechanisms can operate as separate A: and B: drives.
– Modern computers: Typically require a compatible legacy floppy controller or specialized preservation hardware. Ordinary USB floppy adapters generally won’t support both mechanisms.

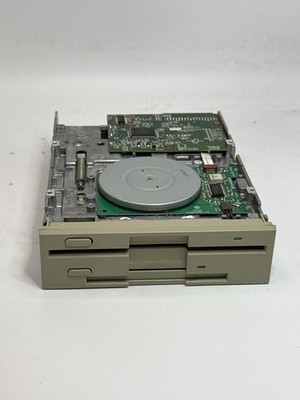

– Both eject buttons and the front bezel are present.

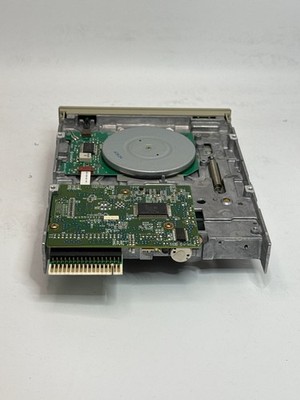

– The main spindle motor and controller boards are visible.
– No obvious severe corrosion or burned components are apparent.
– The two mechanisms cannot be confirmed functional from photographs.
– The exposed configuration does not by itself establish whether the drive belts, heads, or mechanical assemblies need maintenance.
Power Adapter: Does Not Apply — this device does not require a power adapter or detachable power cord.
