Description

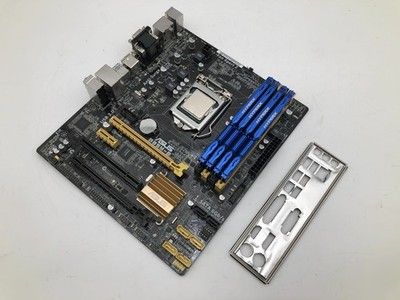

ASUS B85m-E/CSM LGA1150 i7-4790K 32GB Motherboard Combo – Tested
The ASUS B85m-E/CSM is a MicroATX motherboard designed for desktop computers. It features an LGA1150 socket type and supports Intel CPUs. This model includes four DDR3 memory slots, allowing for flexible memory configurations.
Technical Specifications
- Brand: ASUS
- Model: B85m-E/CSM
- Type: Motherboard
- Bundled Items: Motherboard with CPU and Memory
- Form Factor: MicroATX
- Socket Type: LGA1150
- Chipset: B85M-E/CSM
- Memory Type: ddr3
- Number of Memory Slots: 4
- Compatible CPU Brand: Intel
- Series: B85m
- Most Suitable For: Desktop
- Manufacturer Warranty: No Warranty
- BIOS Version: 2304 (05/25/2015)
- IO Shield Included: Yes
- Processor: Intel Core i7-4790K
- Processor Model: Intel Core i7-4790K
- Processor Speed: 4.00 GHZ
- Capacity per Module: 8.00 GB
- Memory Speed: 1600
- Number of Memory Modules: 4
- Total Memory: 32.0 GB

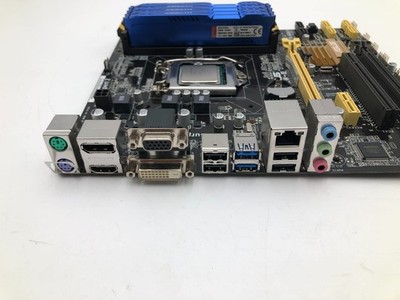

- Input/Output Ports: 4 x USB 3.0 ports, 6 x USB 2.0 ports, 1 x D-Sub port
- Features: Supports Intel Turbo Boost Technology 2.0, Dual-channel memory architecture, Multi-VGA output support, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Expansion Slots: 1 x PCI Express 3.0/2.0 x16 slot
- Country of Origin: China
- Item Height: 9.6 inches
- Item Length: 8.4 inches
- Item Width: 0.9 inches
Bundled CPU & Memory

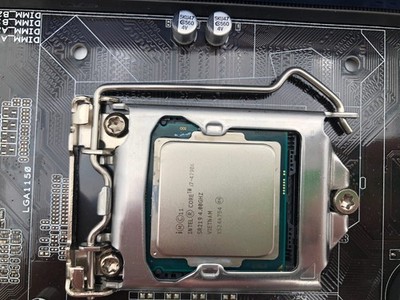

Bundled CPU: Core i7 4790K @ 4.00GHz
CPU test result on this board: PASS
Cooling: No heatsink or fan — CPU only.
I/O Shield
Yes — original I/O shield is included with this motherboard.

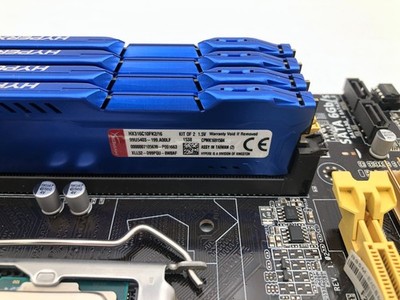

Memory Modules (4)
| Slot | Capacity | Type | Speed | ECC | Manufacturer |
|---|---|---|---|---|---|
| 1 | 8.00GB | 1600 | Kingston | ||
| 2 | 8.00GB | 1600 | Kingston | ||
| 3 | 8.00GB | 1600 | Kingston | ||
| 4 | 8.00GB | 1600 | Kingston |
Cosmetic Condition
- Capacitors: Excellent
- CPU Socket Pins: Pristine
- Onboard Ports: All clean
- M.2 Hardware: Board has no M.2 slots — N/A.
California Prop 65 Warning
This product contains a chemical known to the State of California to cause cancer.
Includes: Item only
Does not Include: No additional items other than what is pictured
R2V3: C4 / F3
Please review all photos for cosmetic condition and any noted defects.
Additional information
| Weight | 6.00 lbs |
|---|---|
| Dimensions | 15.00 × 12.00 × 3.00 in |
| Brand | ASUS |
| Model | B85m-E/CSM |
| MPN | B85m-E/CSM |
| Type | Motherboard |
| Bundled Items | Motherboard with CPU and Memory |
| Form Factor | MicroATX |
| Socket Type | LGA1150 |
| Chipset | B85M-E/CSM |
| Memory Type | ddr3 |
| Number of Memory Slots | 4 |
| Compatible CPU Brand | Intel |
| Series | B85m |
| Most Suitable For | Desktop |
| Manufacturer Warranty | No Warranty |
| Unit Quantity | 1 |
| Unit Type | Unit |
| BIOS Version | 2304 (05/25/2015) |
| IO Shield Included | Yes |
| Processor | Intel Core i7-4790K |
| Processor Model | Intel Core i7-4790K |
| Processor Speed | 4.00 GHZ |
| Capacity per Module | 8.00 GB |
| Memory Speed | 1600 |
| Number of Memory Modules | 4 |
| Total Memory | 32.0 GB |
| Product Condition | Used |
| California Prop 65 Warning | This product contains a chemical known to the State of |
| Input/Output Ports | 4 x USB 3.0 ports, 6 x USB 2.0 ports, 1 x D-Sub port |
| Features | Supports Intel Turbo Boost Technology 2.0, Dual-channel memory architecture, Multi-VGA output support, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Expansion Slots | 1 x PCI Express 3.0/2.0 x16 slot |
| Country of Origin | China |
| Item Height | 9.6 inches |
| Item Length | 8.4 inches |
| Item Width | 0.9 inches |
